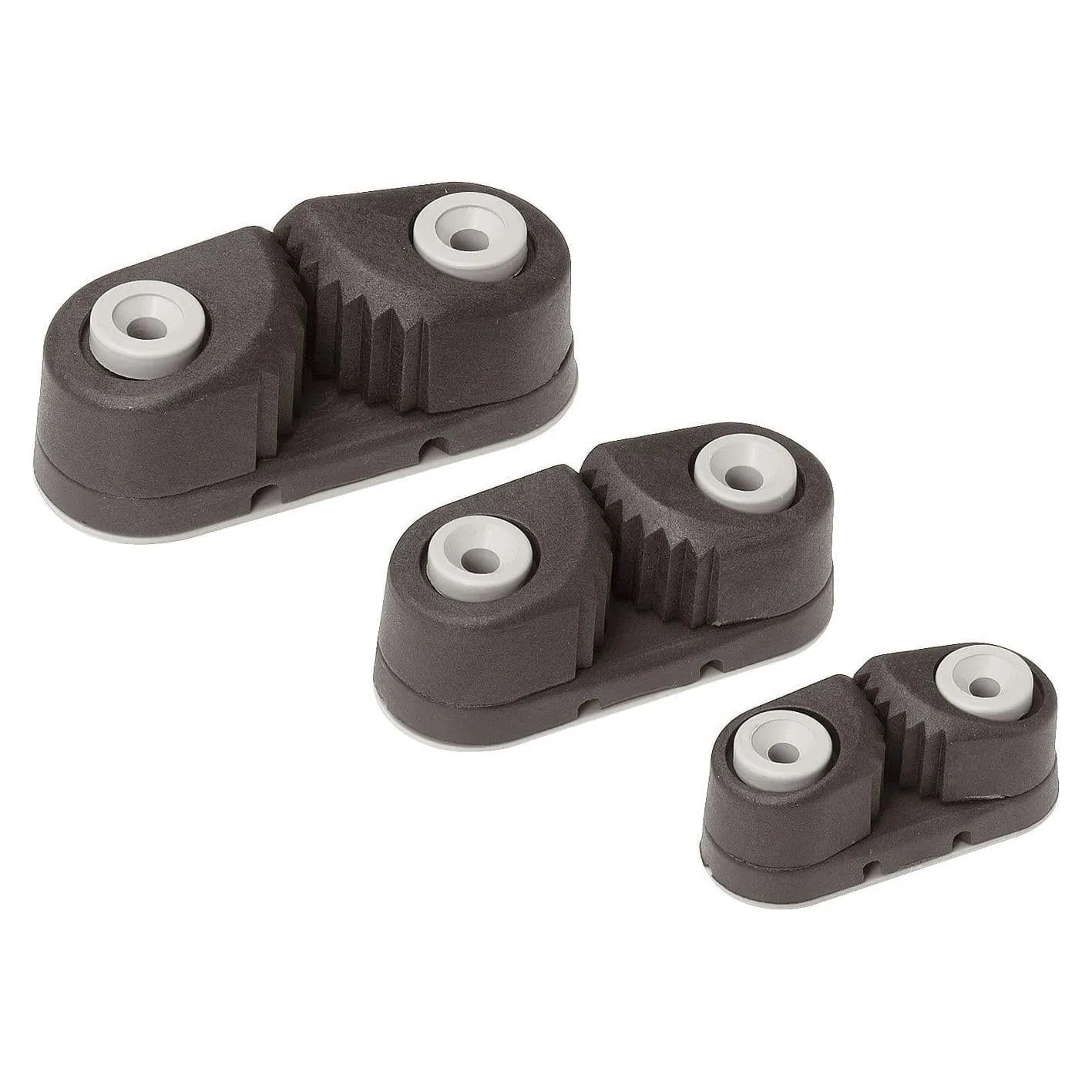

Manufactured from a composite Kevlar/Zytal material and available in 3 sizes to accept lines up to 14mm in diameter. This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced resins; 'K' cams are very strong, lightweight and have excellent wear-resistance. A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.

'K' Cam bases feature a stainless steel wear bar for prolonged life.

Cams utilise stainless steel leaf springs which give a smooth but positive action.

They are also stronger and have a longer life than conventional wire springs.

'K' cam cleats are supplied as cleat only plus separate accessories in grey, green, red or yellow where appropriate, to allow colour co-ordination for port, starboard etc.


Barton Part 70100
Max Line : 8mm
Fastenings : 4mm
Fastening centres: 30mm
Holding power: kg
Weight: 17g

Barton Part 70200
Max Line : 6-12mm
Fastenings : 5mm
Fastening centres: 40mm
Holding power: 230kg
Weight: 34g

Barton Part 70300
Max Line : 10-14mm
Fastenings : 5mm
Fastening centres: 50mm
Holding power: 260kg
Weight: 50g

The purchaser is responsible for choosing the correct product for its particular application. These goods should not be used for over head lifting unless specified.
