Performance
- Max. extraction rate according to DIN/EN 61591:420 m³/h
Functions
- 3 speeds
Design
- Telescopic design
- Push buttons
- 2 x 28 W halogen - energy saving lamps
Safety functions
- Dishwasher safe grease filter
Specifications :
- Diameter of air outlet (mm) : 120 mm
- Product name / Commercial code : DHI623GSG
- Color body : Stainless steel
- Connection Rating (W) : 186 W
- Type of control : mechanical
- Length electrical supply cord (cm) : 200.0 cm
- Current (A) : 10 A
- Frequency (Hz) : 50 Hz
- Grease filter material : Washable synthetic
- Grease filter type : Kassette
- Installation typology : Half-integrated
- Type of lamps used : Halogen
- Light Control Type : on/off
- Number of lights : 2
- Total luminance (lux) : 85 lux
- Type of manual control devices : Push buttons
- Material body : Lacquered
- Motor location : Integrated motor in hood body
- Number of motors : 1

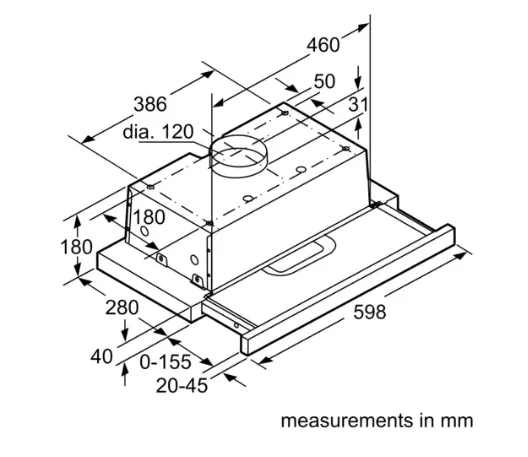

- Required niche size for installation (HxWxD) : 140mm x 550mm x 280mm mm
- No-return airflow flap : No
- Noise level (dB(A) re 1 pW) : 70 dB
- Odour filter : No
- Operating Mode : Convertible
- Plug type : GB plug
- Product group : Hood
- Number of speed settings : 3
- Total power of the motors (W) : 130 W
- Typology : Pull-out
- Voltage (V) : 220-240 V
- Gross weight (kg) : 8.000 kg
- Net weight (kg) : 6.000 kg
- Design - line : Standard
- Mounting depth : 280 mm
- Appliance width : 598 mm
- Ducting connection diameter : 120 mm
